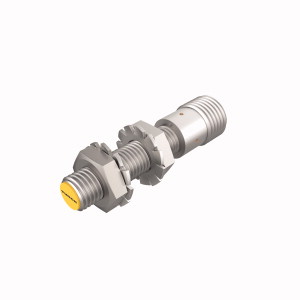

TURCK 4602361 / BI1.5-EG08-AN7X-H1341 Inductive Sensors

Inductive Sensor.

$145.20
Part Numbers
  • BI1.5-EG08-AN7X-H1341
  • 4602361
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 1.5 mm
  • Sensing Characteristics: Standard
  • Housing Material Modifier: Stainless steel
  • Housing Style: Barrel, full threading, generally chrome plated brass
  • Primary Barrel Modifier: Standard
  • Housing Diameter or Height: 08 mm
  • Secondary Barrel Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: NPN transistor (current sinking)
  • Voltage Range: 10 to 30 VDC, TTL compatible
  • Number of LEDS: 1
View other configurations.
Inductive Sensor, Rated switching distance 1.5 mm, Flush, Threaded barrel, M8 x 1, Stainless steel, 1.4427 SO, DC 3-wire, 10…30 VDC, NO contact, NPN output, TTL compatible, M12 x 1 male connector
