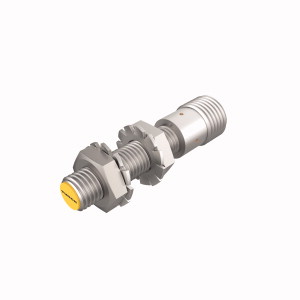

TURCK 4602210 / BI1.5-EG08WD-AP6X-H1341 Inductive Sensors
Inductive Sensor, For Harsh Environments.
Overview
Features
- Mounting: Embeddable
- Principle of Operation: Inductive
- Operating Distance: 1.5 mm
- Sensing Characteristics: Standard
- Housing Material Modifier: Stainless steel
- Housing Style: Barrel, full threading, generally chrome plated brass
- Primary Barrel Modifier: Standard
- Housing Diameter or Height: 08 mm
- Secondary Barrel Modifier: Washdown IP68/69K
- Output Function: Normally open (N.O.)
- Output: PNP transistor (current sourcing)
- Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
- Number of LEDS: 1
Description
Inductive Sensor, For Harsh Environments, Rated switching distance 1.5 mm, Flush, M8 × 1 threaded barrel, Stainless steel, 1.4404, Protection class IP68/IP69K, PVDF front cap, Resistant to cleaning agents, Resistance to cooling lubricants, cutting and grinding oils, Viton O-ring seal, Suitable for applications in the food industry, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector
