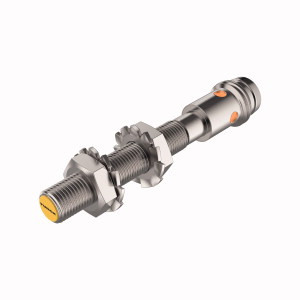

TURCK 4602117 / BI1U-EG05-AP6X-V1331 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$188.60

Part Numbers

BI1U-EG05-AP6X-V1331
4602117

Manufactured

By TURCK

Availability

Usually ships in 7-10 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 1 mm
Sensing Characteristics: Uprox sensor
Housing Material Modifier: Stainless steel
Housing Style: Barrel, full threading, generally chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 5 mm
Secondary Barrel Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

Inductive Sensor, Rated switching distance 1 mm, Flush, M5 × 0.5 threaded barrel, Stainless steel, 1.4427 SO, Factor 1 for all metals, Resistant to magnetic fields, Large switching distance, DC 3-wire, 10…30 VDC, NO contact, PNP output, M8 x 1 male connector
