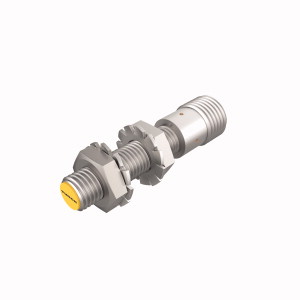

TURCK 4600298 / BI1.5-EG08-AD6X-H1341/S1589 Inductive Sensors

Inductive Sensor, With Weldguard® coating.

Available in other configurations.

TURCK 4600298 / BI1.5-EG08-AD6X-H1341/S1589 Inductive Sensors — TURCK-BI1.5-EG08-AD6X-H1341/S1589

$162.30

Part Numbers

BI1.5-EG08-AD6X-H1341/S1589
4600298

Manufactured

By TURCK

Availability

Usually ships in 3-4 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 1.5 mm
Sensing Characteristics: Standard
Housing Material Modifier: Stainless steel
Housing Style: Barrel, full threading, generally chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 08 mm
Secondary Barrel Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: 2-wire DC (transistor output)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

Inductive Sensor, With Weldguard® coating, Rated switching distance 1.5 mm, Flush, Threaded barrel, M8 x 1, Stainless steel, 1.4301, Front cap with special coating, very resistant to thermal and mechanical load, DC 2-wire, 10…30 VDC, NO contact, M12 x 1 male connector
