TURCK 4590510 / NI10-G18SK-VP4X Inductive Sensors

Inductive Sensor.

Available in other configurations.

$181.20

Part Numbers

NI10-G18SK-VP4X
4590510

Manufactured

By TURCK

Availability

Usually ships in 4-6 weeks

Product Specs

Features

Mounting: Non-embeddable
Principle of Operation: Inductive
Operating Distance: 10 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, full threading, generally chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 18 mm
Secondary Barrel Modifier: Right-angle terminal chamber
Output Function: Complementary outputs: one N.O., one N.C.
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 65 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

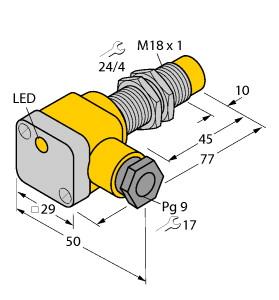

Inductive Sensor, Rated switching distance 10 mm, Non-flush, M18 × 1 threaded barrel, Chrome-plated brass, DC 4-wire, 10…65 VDC, Changeover contact, PNP output, Terminal chamber
