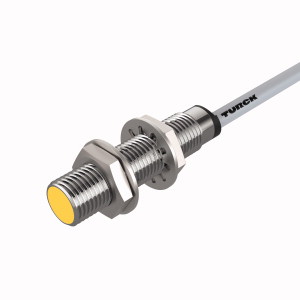

TURCK 4406551 / BI2-M12-RD4X Inductive Sensors

Inductive Sensor.

Available in other configurations.

$123.80

Part Numbers

BI2-M12-RD4X
4406551

Manufactured

By TURCK

Availability

Usually ships in 2-3 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 2 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, partial threading, chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 12 mm
Secondary Barrel Modifier: Without/Not applicable
Output Function: normally closed (N.C.)
Output: 2-wire DC (transistor output)
Voltage Range: 10 to 65 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

Inductive Sensor, Rated switching distance 2 mm, Cable length (L) 2 m, Flush, M12 × 1 threaded barrel, Chrome-plated brass, DC 2-wire, 10…65 VDC, NC contact, Cable connection
