TURCK 4405050 / BI10U-MT30-AD4X-0.3-RS4.23/XOR Inductive Sensors

Inductive Sensor.

Available in other configurations.

$186.80

Part Numbers

BI10U-MT30-AD4X-0.3-RS4.23/XOR
4405050

Manufactured

By TURCK

Availability

Usually ships in 4-6 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 10 mm
Sensing Characteristics: Uprox sensor
Housing Material Modifier: Without
Housing Style: Barrel, partial threading, chrome plated brass
Primary Barrel Modifier: PTFE coated
Housing Diameter or Height: 30 mm
Secondary Barrel Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: 2-wire DC (transistor output)
Voltage Range: 10 to 65 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

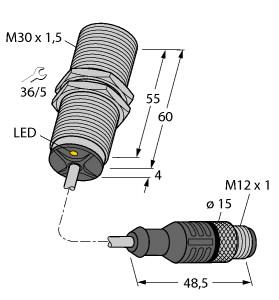

Inductive Sensor, Rated switching distance 10 mm, Cable length (L) 0.3 m, Flush, Threaded barrel, M30 x 1.5, Brass, PTFE-coated, Factor 1 for all metals, Resistant to magnetic fields, DC 2-wire, 10…65 VDC, NO contact, Cable with male end
