TURCK 4372202 / BI10-EG30-AZ3X-B1131/S120 Inductive Sensors

Inductive Sensor, With Increased Temperature Range.

$405.90
Part Numbers
  • BI10-EG30-AZ3X-B1131/S120
  • 4372202
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 10 mm
  • Sensing Characteristics: Standard
  • Housing Material Modifier: Stainless steel
  • Housing Style: Barrel, full threading, generally chrome plated brass
  • Primary Barrel Modifier: Standard
  • Housing Diameter or Height: 30 mm
  • Secondary Barrel Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: 2-wire AC or 2-wire AC/DC
  • Voltage Range: 20 to 250 VAC, 10 to 300 VDC, without short circuit and overload protection
  • Number of LEDS: 1
View other configurations.

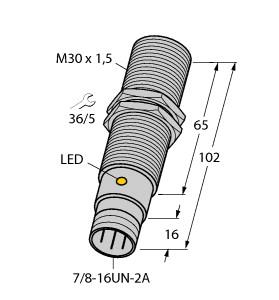

Inductive Sensor, With Increased Temperature Range, Rated switching distance 10 mm, Flush, Threaded barrel, M30 x 1.5, Stainless steel, 1.4571, S120 = Temperatures up to +120 °C, AC 2-wire, 20…250 VAC, NO contact, 7/8 connector, "
