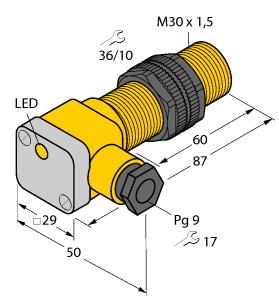

TURCK 4356500 / NI15-P30SK-AZ3X2 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$212.80

Part Numbers

NI15-P30SK-AZ3X2
4356500

Manufactured

By TURCK

Availability

Usually ships in 3-4 weeks

Product Specs

Features

Mounting: Non-embeddable
Principle of Operation: Inductive
Operating Distance: 1.5 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, plastic, full threading
Primary Barrel Modifier: Standard
Housing Diameter or Height: 30 mm
Secondary Barrel Modifier: Right-angle terminal chamber
Output Function: Normally open (N.O.)
Output: 2-wire AC or 2-wire AC/DC
Voltage Range: 20 to 250 VAC, 10 to 300 VDC, without short circuit and overload protection
Number of LEDS: 2

View other configurations.

Inductive Sensor, Rated switching distance 15 mm, Non-flush, Threaded barrel, M30 x 1.5, Plastic, PA12‐GF30, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NO contact, Terminal chamber
