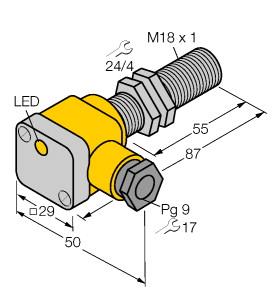

TURCK 4331600 / BI5-G18SK-RZ3X2 55MM Inductive Sensors

Inductive Sensor.

Available in other configurations.

$224.90

Part Numbers

BI5-G18SK-RZ3X2 55MM
4331600

Manufactured

By TURCK

Availability

Usually ships in 3-4 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 5 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, full threading, generally chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 18 mm
Secondary Barrel Modifier: Right-angle terminal chamber
Output Function: normally closed (N.C.)
Output: 2-wire AC or 2-wire AC/DC
Voltage Range: 20 to 250 VAC, 10 to 300 VDC, without short circuit and overload protection
Number of LEDS: 2

View other configurations.

Inductive Sensor, Rated switching distance 5 mm, Flush, M18 × 1 threaded barrel, Chrome-plated brass, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NC contact, Terminal chamber
