TURCK 4283510 / BI20-G47-ADZ30X2-B2131 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$408.20

Part Numbers

BI20-G47-ADZ30X2-B2131
4283510

Manufactured

By TURCK

Availability

Usually ships in 4-6 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 20 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, full threading, generally chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 4.7 mm
Secondary Barrel Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: 2-wire AC/DC, (power MOSFET output)
Voltage Range: 20 to 250 VAC, 10 to 300 VDC 400 mA, latched short circuit and overload protection
Number of LEDS: 2

View other configurations.

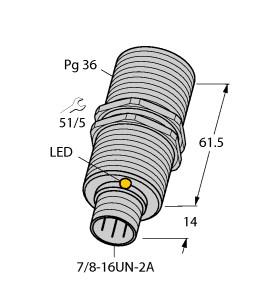

Inductive Sensor, Rated switching distance 20 mm, Flush, PG36 threaded barrel, Chrome-plated brass, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NO contact, 7/8" male connector
