TURCK 4281612 / BI10U-G30-ADZ30X2-B1131 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$255.90

Part Numbers

BI10U-G30-ADZ30X2-B1131
4281612

Manufactured

By TURCK

Availability

Usually ships in 1-2 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 10 mm
Sensing Characteristics: Uprox sensor
Housing Material Modifier: Without
Housing Style: Barrel, full threading, generally chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 30 mm
Secondary Barrel Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: 2-wire AC/DC, (power MOSFET output)
Voltage Range: 20 to 250 VAC, 10 to 300 VDC 400 mA, latched short circuit and overload protection
Number of LEDS: 2

View other configurations.

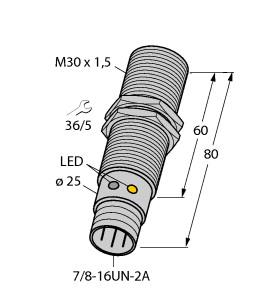

Inductive Sensor, Rated switching distance 10 mm, Flush, Threaded barrel, M30 x 1.5, Chrome-plated brass, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NO contact, 7/8" male connector
