TURCK 4280991 / NI75U-CP80-FDZ30X2-B1131 Inductive Sensors

Inductive Sensor, With Increased Switching Distance.

Available in other configurations.

TURCK 4280991 / NI75U-CP80-FDZ30X2-B1131 Inductive Sensors — TURCK-NI75U-CP80-FDZ30X2-B1131

$741.50

Part Numbers

NI75U-CP80-FDZ30X2-B1131
4280991

Manufactured

By TURCK

Availability

Usually ships in 3-4 weeks

Product Specs

Features

Mounting: Non-embeddable
Principle of Operation: Inductive
Operating Distance: 75 mm
Sensing Characteristics: Uprox sensor
Housing Style: Combiprox model limit switch, plastic housing, terminal chamber base with removable sensor

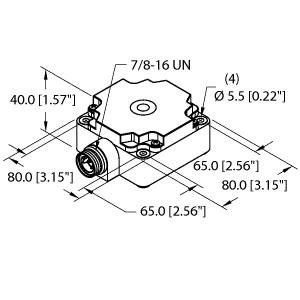

Housing Diameter or Height: 80 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Connection programmable (N.O. or N.C)
Output: 2-wire AC/DC, (power MOSFET output)
Voltage Range: 20 to 250 VAC, 10 to 300 VDC 400 mA, latched short circuit and overload protection
Number of LEDS: 2

View other configurations.

Inductive Sensor, With Increased Switching Distance, Rated switching distance 75 mm, Non-flush, Rectangular, height 41 mm, Plastic, PBT‐GF30‐V0, Factor 1 for all metals, Resistant to magnetic fields, Large coverage, Extended temperature range, High switching frequency, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NO contact, 7/8 connector, "
