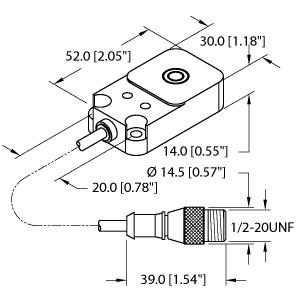

TURCK 4256289 / BI10-Q14-ADZ32X2-0.2-SB3T Inductive Sensors

Inductive Sensor.

$200.60
Part Numbers
  • BI10-Q14-ADZ32X2-0.2-SB3T
  • 4256289
Manufactured
Availability
  • Usually ships in 8-12 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 10 mm
  • Sensing Characteristics: Standard
  • Housing Style: Rectangular style, metal or plastic
  • Housing Diameter or Height: 14 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: 2-wire AC/DC, (power MOSFET output)
  • Voltage Range: 20 to 250 VAC, 10 to 300 VDC 400 mA, latched short circuit and overload protection
  • Number of LEDS: 2
View other configurations.
Inductive Sensor, Rated switching distance 10 mm, Cable length (L) 0.2 m, Flush, Rectangular, height 14 mm, Active face on top, Plastic, PBT‐GF30‐V0, AC 2‐wire, 20–250 VAC, DC 2-wire, 10–300 VDC, NO contact, 1/2 male connector, "
