TURCK 4230990 / BI40-CP80-FDZ30X2-B1131 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$727.40

Part Numbers

BI40-CP80-FDZ30X2-B1131
4230990

Manufactured

By TURCK

Availability

Usually ships in 7-10 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 40 mm
Sensing Characteristics: Standard
Housing Style: Combiprox model limit switch, plastic housing, terminal chamber base with removable sensor
Housing Diameter or Height: 80 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Connection programmable (N.O. or N.C)
Output: 2-wire AC/DC, (power MOSFET output)
Voltage Range: 20 to 250 VAC, 10 to 300 VDC 400 mA, latched short circuit and overload protection
Number of LEDS: 2

View other configurations.

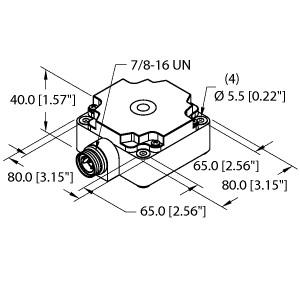

Inductive Sensor, Rated switching distance 40 mm, Flush, Rectangular, height 41 mm, Plastic, PBT‐GF30‐V0, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NO contact, 7/8 connector, "
