TURCK 4224593 / NI35-CP40-FDZ30X2-B3131 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$518.70

Part Numbers

NI35-CP40-FDZ30X2-B3131
4224593

Manufactured

By TURCK

Availability

Usually ships in 8-12 weeks

Product Specs

Features

Mounting: Non-embeddable
Principle of Operation: Inductive
Operating Distance: 3.5 mm
Sensing Characteristics: Standard

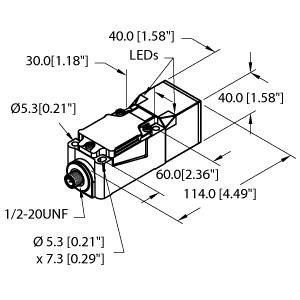

Housing Style: Combiprox model limit switch, plastic housing, terminal chamber base with removable sensor
Housing Diameter or Height: 40 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Connection programmable (N.O. or N.C)
Output: 2-wire AC/DC, (power MOSFET output)
Voltage Range: 20 to 250 VAC, 10 to 300 VDC 400 mA, latched short circuit and overload protection
Number of LEDS: 2

View other configurations.

Inductive Sensor, Rated switching distance 35 mm, Non-flush, Rectangular, height 40 mm, Variable orientation of active face in 9 directions, Plastic, PBT-GF30-VO, High-luminance corner LEDs, Optimum view of operating voltage and switching state from any position, AC 2-wire, 20…250 VDC, DC 2-wire, 10…300 VDC, NC/NO programmable, ½" connector
