TURCK 4207289 / BI15-G30-RDZ30X2-B1131 Inductive Sensors

Inductive Sensor, With Increased Switching Distance.

$216.60
Part Numbers
  • BI15-G30-RDZ30X2-B1131
  • 4207289
Manufactured
Availability
  • Usually ships in 1-2 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 1.5 mm
  • Sensing Characteristics: Standard
  • Housing Material Modifier: Without
  • Housing Style: Barrel, full threading, generally chrome plated brass
  • Primary Barrel Modifier: Standard
  • Housing Diameter or Height: 30 mm
  • Secondary Barrel Modifier: Without/Not applicable
  • Output Function: normally closed (N.C.)
  • Output: 2-wire AC/DC, (power MOSFET output)
  • Voltage Range: 20 to 250 VAC, 10 to 300 VDC 400 mA, latched short circuit and overload protection
  • Number of LEDS: 2
View other configurations.

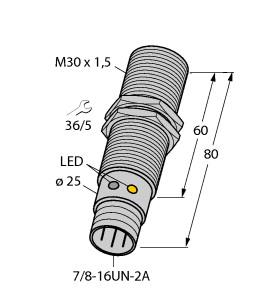

Inductive Sensor, With Increased Switching Distance, Rated switching distance 15 mm, Flush, Threaded barrel, M30 x 1.5, Chrome-plated brass, Large sensing range, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NC contact, 7/8" male connector
