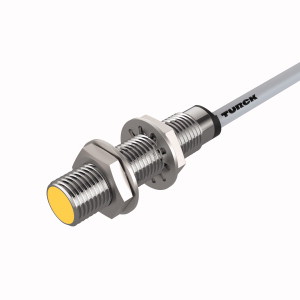

TURCK 4205010 / BI2-GT12-ADZ32X/S34 Inductive Sensors

Inductive Sensor, Resistant to Magnetic Fields.

$279.40
Part Numbers
  • BI2-GT12-ADZ32X/S34
  • 4205010
Manufactured
Availability
  • Usually ships in 3-4 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 2 mm
  • Sensing Characteristics: Standard
  • Housing Material Modifier: Without
  • Housing Style: Barrel, full threading, generally chrome plated brass
  • Primary Barrel Modifier: PTFE coated
  • Housing Diameter or Height: 12 mm
  • Secondary Barrel Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: 2-wire AC/DC, (power MOSFET output)
  • Voltage Range: 20 to 250 VAC, 10 to 300 VDC 400 mA, latched short circuit and overload protection
  • Number of LEDS: 1
View other configurations.
Inductive Sensor, Resistant to Magnetic Fields, Rated switching distance 2 mm, Cable length (L) 2 m, Flush, Threaded barrel, M12 × 1, Brass, PTFE-coated, , AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NO contact, Cable connection
