TURCK 4200310 / BI50-Q80-ADZ30X2-B1131 Inductive Sensors

Inductive Sensor, With Increased Switching Distance.

$371.00
Part Numbers
  • BI50-Q80-ADZ30X2-B1131
  • 4200310
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 50 mm
  • Sensing Characteristics: Standard
  • Housing Style: Rectangular style, metal or plastic
  • Housing Diameter or Height: 80 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: 2-wire AC/DC, (power MOSFET output)
  • Voltage Range: 20 to 250 VAC, 10 to 300 VDC 400 mA, latched short circuit and overload protection
  • Number of LEDS: 2
View other configurations.

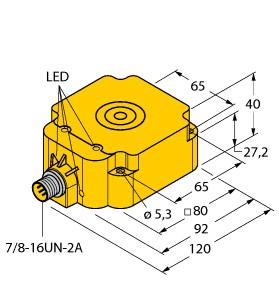

Inductive Sensor, With Increased Switching Distance, Rated switching distance 50 mm, Flush, Rectangular, height 40 mm, Active face on top, Plastic, PBT‐GF30‐V0, Large sensing range, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NO contact, 7/8" male connector
