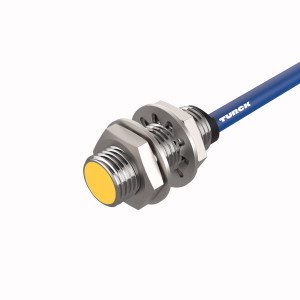

TURCK 4010000 / BI2-G12-Y0X Inductive Sensors

Inductive Sensor.

$107.10
Part Numbers
  • BI2-G12-Y0X
  • 4010000
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 2 mm
  • Sensing Characteristics: Standard
  • Housing Material Modifier: Without
  • Housing Style: Barrel, full threading, generally chrome plated brass
  • Primary Barrel Modifier: Without/Not applicable
  • Housing Diameter or Height: 12 mm
  • Secondary Barrel Modifier: Without/Not applicable
  • Output Function: NAMUR output, requires switching amplifier
  • Output: 2-wire DC
  • Voltage Range: 8.2 VDC
  • Number of LEDS: 1
View other configurations.
Inductive Sensor, Rated switching distance 2 mm, Cable length (L) 2 m, Flush, Threaded barrel, M12 x 1, Chrome-plated brass, DC 2-wire, nom. 8.2 VDC, Output acc. to DIN EN 60947-5-6 (NAMUR), Cable connection
