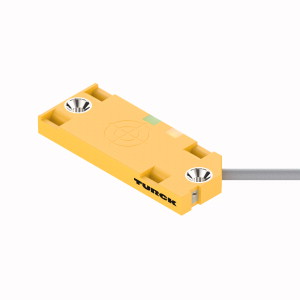

TURCK 2620116 / BC5-QF5.5-AP6X2/S250 Capacitive Sensors

Capacitive Sensor.

Available in other configurations.

$137.40

Part Numbers

BC5-QF5.5-AP6X2/S250
2620116

Manufactured

By TURCK

Availability

Usually ships in 1-2 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Capacitive (IP67)
Operating Distance: 5 mm
Housing Style: Rectangular style, polypropylene
Housing Diameter or Height: 5.5 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 2

View other configurations.

Capacitive Sensor, Rated switching distance 5 mm, Cable length (L) 2 m, Flush, Rectangular, height 5.5 mm, Large active face, marked for correct installation, Plastic, PP, Fixed settings, DC 3-wire, 10…30 VDC, NO contact, PNP output, Cable connection
