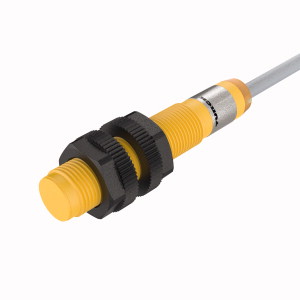

TURCK 2601201 / BC3-S12-AP6X/S100 Capacitive Sensors

Capacitive Sensor, With Increased Temperature Range.

$512.10
Part Numbers
  • BC3-S12-AP6X/S100
  • 2601201
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Capacitive (IP67)
  • Operating Distance: 3 mm
  • Housing Style: Barrel, plastic, partial threading
  • Housing Diameter or Height: 12 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 1
View other configurations.
Capacitive Sensor, With Increased Temperature Range, Rated switching distance 4.5 mm, Cable length (L) 2 m, Flush, M12 × 1 threaded barrel, Plastic, PA12‐GF30, Fine adjustment via potentiometer, For temperatures up to 100°C, DC 3-wire, 10…30 VDC, NO contact, PNP output, Cable connection
