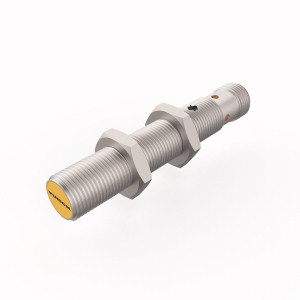

TURCK 2601011 / BC3-M12-AP6X-H1141 Capacitive Sensors

Capacitive Sensor.

Available in other configurations.

$398.30

Part Numbers

BC3-M12-AP6X-H1141
2601011

Manufactured

By TURCK

Availability

Usually ships in 0-7 business days

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Capacitive (IP67)
Operating Distance: 3 mm
Housing Style: Barrel, partial threading, chrome plated brass
Housing Diameter or Height: 12 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

Capacitive Sensor, Rated switching distance 3 mm, Flush, M12 × 1 threaded barrel, Chrome-plated brass, Fine adjustment via potentiometer, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 × 1 connector
