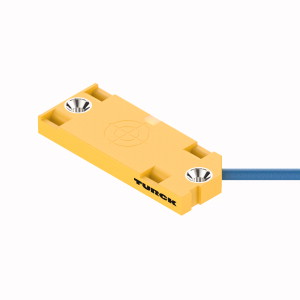

TURCK 2030000 / BC5-QF5.5-Y1X/S250 Capacitive Sensors
Capacitive Sensor.
Overview
Features
- Mounting: Embeddable
- Principle of Operation: Capacitive (IP67)
- Operating Distance: 5 mm
- Housing Style: Rectangular style, polypropylene
- Housing Diameter or Height: 5.5 mm
- Secondary Housing Modifier: Without/Not applicable
- Output Function: NAMUR output, requires switching amplifier/ATEX approved
- Output: 2-wire DC
- Voltage Range: 8.2 VDC
- Number of LEDS: 1
Description
Capacitive Sensor, Rated switching distance 5 mm, Cable length (L) 2 m, Flush, Rectangular, height 5.5 mm, Large active face, marked for correct installation, Plastic, PP, Fixed settings, DC 2-wire, nom. 8.2 VDC, Output acc. to DIN EN 60947-5-6 (NAMUR), Cable connection, ATEX category II 1 G, Ex zone 0, ATEX category II 1 D, Ex zone 20, SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0, SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
