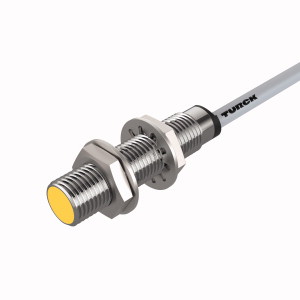

TURCK 1690795 / BI4-G12-AN6X 7M Inductive Sensors

Inductive Sensor.

Available in other configurations.

$139.00

Part Numbers

BI4-G12-AN6X 7M
1690795

Manufactured

By TURCK

Availability

Usually ships in 2-3 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 4 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, full threading, generally chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 12 mm
Secondary Barrel Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: NPN transistor (current sinking)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

Inductive Sensor, Rated switching distance 4 mm, Cable length (L) 7 m, Flush, Threaded barrel, M12 x 1, Chrome-plated brass, DC 3-wire, 10…30 VDC, NO contact, NPN output, Cable connection
