TURCK 1650054 / NI2-Q6.5-AP6-0.13-FS4.4X3/S304 Inductive Sensors

Inductive Sensor, Monitoring Kit for Power Clamps.

$254.00
Part Numbers
  • NI2-Q6.5-AP6-0.13-FS4.4X3/S304
  • 1650054
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Non-embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 2 mm
  • Sensing Characteristics: Standard
  • Housing Style: Rectangular style, metal or plastic
  • Housing Diameter or Height: 6.5 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: None
View other configurations.

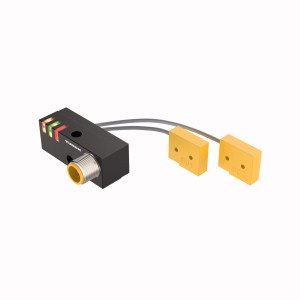

Inductive Sensor, Monitoring Kit for Power Clamps, Rated switching distance 2 mm, Cable length (L) 0.13 m, Non-flush, Q6,5 power block with two connected sensors and LEDs, Relocatable block 0°…90°, with cross drilling for flexible cable routing, Plastic, PBT‐GF20‐V0, Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT, 2 x NO contact, PNP output, DC 4-wire, 10…30 VDC
