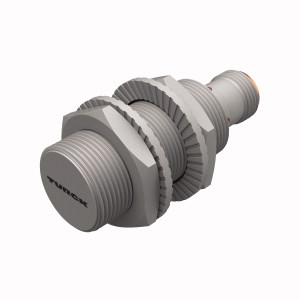

TURCK 1644789 / BI8U-MT18-AP6X-H1141/S1589 Inductive Sensors

Inductive Sensor, With WeldGuard™ coating.

$191.90
Part Numbers
  • BI8U-MT18-AP6X-H1141/S1589
  • 1644789
Manufactured
Availability
  • Usually ships in 0-7 business days
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 8 mm
  • Sensing Characteristics: Uprox sensor
  • Housing Material Modifier: Without
  • Housing Style: Barrel, partial threading, chrome plated brass
  • Primary Barrel Modifier: PTFE coated
  • Housing Diameter or Height: 18 mm
  • Secondary Barrel Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 1
View other configurations.
Inductive Sensor, With WeldGuard™ coating, Rated switching distance 8 mm, Flush, Threaded barrel, M18 x 1, Brass with special coating, Front cap with special coating, very resistant to thermal and mechanical load, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Large switching distance, Recessed mountable, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector
