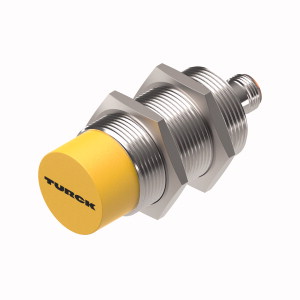

TURCK 1644756 / NI30U-M30E-AP6X-H1141 Inductive Sensors

Inductive Sensor, With Extended Switching Distance.

$150.20
Part Numbers
  • NI30U-M30E-AP6X-H1141
  • 1644756
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Non-embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 30 mm
  • Sensing Characteristics: Uprox sensor
  • Housing Material Modifier: Without
  • Housing Style: Barrel, partial threading, chrome plated brass
  • Primary Barrel Modifier: Standard
  • Housing Diameter or Height: 30 mm
  • Secondary Barrel Modifier: Extended barrel length
  • Output Function: Normally open (N.O.)
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 1
View other configurations.
Inductive Sensor, With Extended Switching Distance, Rated switching distance 30 mm, Non-flush, Threaded barrel, M30 x 1.5, Long version, Chrome-plated brass, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Large switching distance, Integrated protection against predamping, Little metal-free spaces, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector
