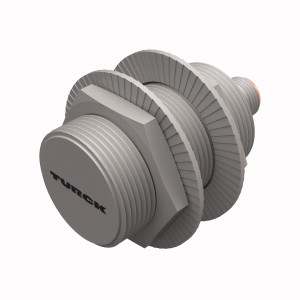

TURCK 1644741 / BI15U-MT30-AP6X2-H1141 Inductive Sensors
Inductive Sensor, With Extended Switching Distance.
Overview
Features
- Mounting: Embeddable
- Principle of Operation: Inductive
- Operating Distance: 1.5 mm
- Sensing Characteristics: Uprox sensor
- Housing Material Modifier: Without
- Housing Style: Barrel, partial threading, chrome plated brass
- Primary Barrel Modifier: PTFE coated
- Housing Diameter or Height: 30 mm
- Secondary Barrel Modifier: Without/Not applicable
- Output Function: Normally open (N.O.)
- Output: PNP transistor (current sourcing)
- Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
- Number of LEDS: 2
Description
Inductive Sensor, With Extended Switching Distance, Rated switching distance 15 mm, Flush, M30 × 1.5 threaded barrel, Brass, PTFE-coated, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Large switching distance, Recessed mountable, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector
