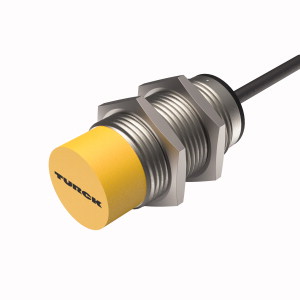

TURCK 1644634 / NI30U-M30-AN6X Inductive Sensors
Inductive Sensor, With Extended Switching Distance.
Overview
Features
- Mounting: Non-embeddable
- Principle of Operation: Inductive
- Operating Distance: 30 mm
- Sensing Characteristics: Uprox sensor
- Housing Material Modifier: Without
- Housing Style: Barrel, partial threading, chrome plated brass
- Primary Barrel Modifier: Standard
- Housing Diameter or Height: 30 mm
- Secondary Barrel Modifier: Without/Not applicable
- Output Function: Normally open (N.O.)
- Output: NPN transistor (current sinking)
- Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
- Number of LEDS: 1
Description
Inductive Sensor, With Extended Switching Distance, Rated switching distance 30 mm, Cable length (L) 2 m, Non-flush, M30 × 1.5 threaded tube, Chrome-plated brass, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Large switching distance, Integrated protection against predamping, Little metal-free spaces, DC 3-wire, 10…30 VDC, NO contact, NPN output, Cable connection
