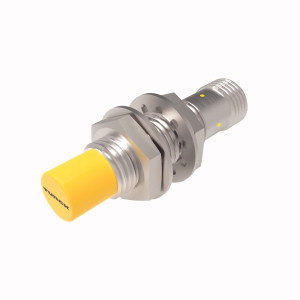

TURCK 1644150 / NI8U-M12-AN6X-H1141 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$139.90

Part Numbers

NI8U-M12-AN6X-H1141
1644150

Manufactured

By TURCK

Availability

Usually ships in 0-7 business days

Product Specs

Features

Mounting: Non-embeddable
Principle of Operation: Inductive
Operating Distance: 8 mm
Sensing Characteristics: Uprox sensor
Housing Material Modifier: Without
Housing Style: Barrel, partial threading, chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 12 mm
Secondary Barrel Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: NPN transistor (current sinking)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

Inductive Sensor, Rated switching distance 8 mm, Non-flush, M12 × 1 threaded barrel, Chrome-plated brass, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, DC 3-wire, 10…30 VDC, NO contact, NPN output, M12 x 1 male connector
