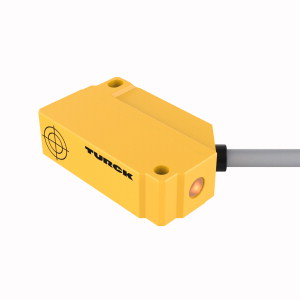

TURCK 1635539 / BI5U-Q12-AN6X2/F2 Inductive Sensors

Inductive Sensor, With Extended Switching Distance.

$138.10
Part Numbers
  • BI5U-Q12-AN6X2/F2
  • 1635539
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 5 mm
  • Sensing Characteristics: Uprox sensor
  • Housing Style: Rectangular style, metal or plastic
  • Housing Diameter or Height: 12 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: NPN transistor (current sinking)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 2
View other configurations.
Inductive Sensor, With Extended Switching Distance, Rated switching distance 5 mm, Cable length (L) 2 m, Flush, Rectangular, height 12mm, Active face, lateral, Plastic, PA12‐GF30, Factor 1 for all metals, Increased switching distance, Protection class IP68, Resistant to magnetic fields, Mountable on metal, Shifted oscillator frequency, DC 3-wire, 10…30 VDC, NO contact, NPN output, Cable connection
