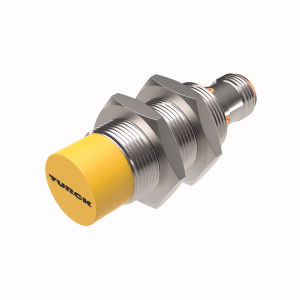

TURCK 1635450 / NI15U-M18-RP6X-H1141 Inductive Sensors
Inductive Sensor, With Extended Switching Distance.
Overview
Features
- Mounting: Non-embeddable
- Principle of Operation: Inductive
- Operating Distance: 1.5 mm
- Sensing Characteristics: Uprox sensor
- Housing Material Modifier: Without
- Housing Style: Barrel, partial threading, chrome plated brass
- Primary Barrel Modifier: Standard
- Housing Diameter or Height: 18 mm
- Secondary Barrel Modifier: Without/Not applicable
- Output Function: normally closed (N.C.)
- Output: PNP transistor (current sourcing)
- Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
- Number of LEDS: 1
Description
Inductive Sensor, With Extended Switching Distance, Rated switching distance 15 mm, Non-flush, Threaded barrel, M18 x 1, Chrome-plated brass, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Large switching distance, Integrated protection against predamping, Little metal-free spaces, DC 3-wire, 10…30 VDC, NC contact, PNP output, M12 x 1 male connector
