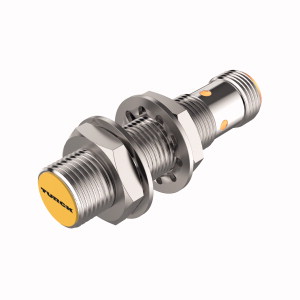

TURCK 1634140 / BI3U-M12-AP6X-H1141 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$139.90

Part Numbers

BI3U-M12-AP6X-H1141
1634140

Manufactured

By TURCK

Availability

Usually ships in 0-7 business days

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 3 mm
Sensing Characteristics: Uprox sensor
Housing Material Modifier: Without
Housing Style: Barrel, partial threading, chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 12 mm
Secondary Barrel Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

Inductive Sensor, Rated switching distance 3 mm, Flush, M12 × 1 threaded barrel, Chrome-plated brass, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector
