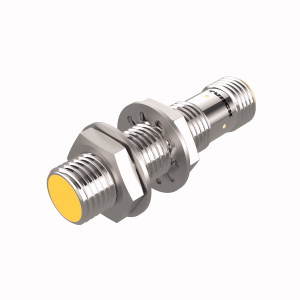

TURCK 1633201 / BI4-EM12-VP6X-H1141 Inductive Sensors
Inductive Sensor, With Increased Switching Distance.
Overview
Features
- Mounting: Embeddable
- Principle of Operation: Inductive
- Operating Distance: 4 mm
- Sensing Characteristics: Standard
- Housing Material Modifier: Stainless steel
- Housing Style: Barrel, partial threading, chrome plated brass
- Primary Barrel Modifier: Standard
- Housing Diameter or Height: 12 mm
- Secondary Barrel Modifier: Without/Not applicable
- Output Function: Complementary outputs: one N.O., one N.C.
- Output: PNP transistor (current sourcing)
- Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
- Number of LEDS: 1
Description
Inductive Sensor, With Increased Switching Distance, Rated switching distance 4 mm, Flush, Threaded barrel, M12 x 1, Stainless steel, 1.4301, Large sensing range, DC 4-wire, 10…30 VDC, Changeover contact, PNP output, M12 x 1 male connector
