TURCK 1627295 / BI20U-CA40-AP6X2-H1141/S1590 W/BS2.1 Inductive Sensors

Inductive Sensor, With WeldGuard™ Coating.

Available in other configurations.

TURCK 1627295 / BI20U-CA40-AP6X2-H1141/S1590 W/BS2.1 Inductive Sensors — TURCK-BI20U-CA40-AP6X2-H1141/S1590 W/BS2.1

$297.70

Part Numbers

BI20U-CA40-AP6X2-H1141/S1590 W/BS2.1
1627295

Manufactured

By TURCK

Availability

Usually ships in 1-2 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 20 mm
Sensing Characteristics: Uprox sensor
Housing Style: Stubby model limit switch, short aluminum housing, connector
Housing Diameter or Height: 40 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 2

View other configurations.

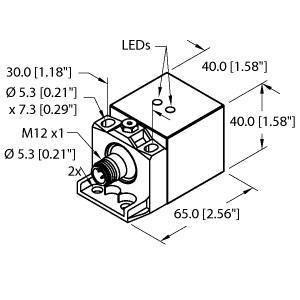

Inductive Sensor, With WeldGuard™ Coating, Rated switching distance 20 mm, Flush, Rectangular, height 40 mm, Variable orientation of active face in 5 directions, Sensor housing GD-ALSI 12, Active face PA6-GF30, Factor 1 for all metals, Protection class IP67, Resistant to magnetic fields, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector
