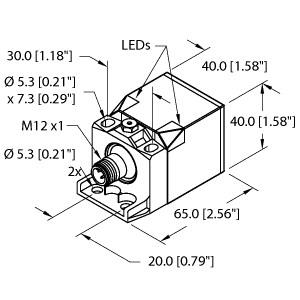

TURCK 1627207 / BI20U-CK40-RP6X2-H1143 W/BS2.1 Inductive Sensors

Inductive Sensor, With Extended Switching Distance.

$202.30
Part Numbers
  • BI20U-CK40-RP6X2-H1143 W/BS2.1
  • 1627207
Manufactured
Availability
  • Usually ships in 0-7 business days
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 20 mm
  • Sensing Characteristics: Uprox sensor
  • Housing Material Modifier: Without
  • Housing Style: Stubby model limit switch, short plastic housing, connector
  • Primary Barrel Modifier: Without/Not applicable
  • Housing Diameter or Height: 40 mm
  • Secondary Barrel Modifier: Without/Not applicable
  • Output Function: normally closed (N.C.)
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 2
View other configurations.
Inductive Sensor, With Extended Switching Distance, Rated switching distance 20 mm, Flush, Rectangular, height 40 mm, Variable orientation of active face in 5 directions, Plastic, PBT‐GF30‐V0, High luminance corner LEDs, Optimum view on supply voltage and switching state from any position, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Large coverage, High switching frequency, DC 3-wire, 10…30 VDC, NC contact, PNP output, M12 x 1 male connector
