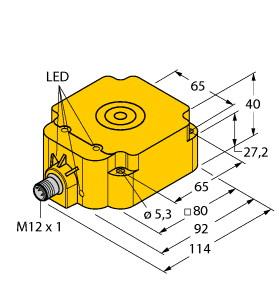

TURCK 1625855 / NI75U-Q80-AP6X2-H1141 Inductive Sensors
Inductive Sensor, With Extended Switching Distance.
Overview
Features
- Mounting: Non-embeddable
- Principle of Operation: Inductive
- Operating Distance: 75 mm
- Sensing Characteristics: Uprox sensor
- Housing Style: Rectangular style, metal or plastic
- Housing Diameter or Height: 80 mm
- Secondary Housing Modifier: Without/Not applicable
- Output Function: Normally open (N.O.)
- Output: PNP transistor (current sourcing)
- Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
- Number of LEDS: 2
Description
Inductive Sensor, With Extended Switching Distance, Rated switching distance 75 mm, Non-flush, Rectangular, height 40 mm, Active face on top, Plastic, PBT‐GF30‐V0, 4 LEDs for optimum view on supply voltage and switching state from any position, Factor 1 for all metals, Increased switching distance, Protection class IP68, Resistant to magnetic fields, Auto-compensation protects against pre-damping, Partially embeddable, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector
