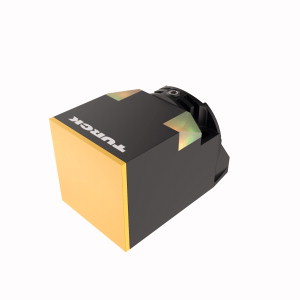

TURCK 1625838 / NI50U-CK40-RP6X2-H1143 Inductive Sensors
Inductive Sensor, With Extended Switching Distance.
Overview
Features
- Mounting: Non-embeddable
- Principle of Operation: Inductive
- Operating Distance: 50 mm
- Sensing Characteristics: Uprox sensor
- Housing Material Modifier: Without
- Housing Style: Stubby model limit switch, short plastic housing, connector
- Primary Barrel Modifier: Without/Not applicable
- Housing Diameter or Height: 40 mm
- Secondary Barrel Modifier: Without/Not applicable
- Output Function: normally closed (N.C.)
- Output: PNP transistor (current sourcing)
- Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
- Number of LEDS: 2
Description
Inductive Sensor, With Extended Switching Distance, Rated switching distance 50 mm, Non-flush, Rectangular, height 40 mm, Variable orientation of active face in 5 directions, Plastic, PBT‐GF30‐V0, High luminance corner LEDs, Optimum view on supply voltage and switching state from any position, Factor 1 for all metals, Increased switching distance, Protection class IP68, Resistant to magnetic fields, Auto-compensation protects against pre-damping, Partially embeddable, DC 3-wire, 10…30 VDC, NC contact, PNP output, M12 x 1 male connector
