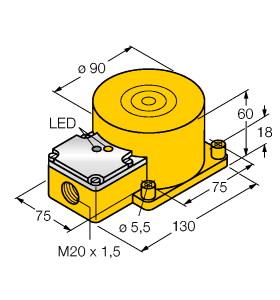

TURCK 1625834 / NI100U-K90SR-VP4X2 Inductive Sensors

Inductive Sensor, With Extended Switching Distance.

$555.10
Part Numbers
  • NI100U-K90SR-VP4X2
  • 1625834
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • Mounting: Non-embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 100 mm
  • Sensing Characteristics: Uprox sensor
  • Housing Material Modifier: Without
  • Housing Style: Smooth, plastic
  • Primary Barrel Modifier: Standard
  • Housing Diameter or Height: 90 mm
  • Secondary Barrel Modifier: Straight terminal chamber
  • Output Function: Complementary outputs: one N.O., one N.C.
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 65 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 2
View other configurations.
Inductive Sensor, With Extended Switching Distance, Rated switching distance 100 mm, Non-flush, Rectangular, height 60 mm, Plastic, PBT‐GF30‐V0, Factor 1 for all metals, Increased switching distance, Protection class IP68, Resistant to magnetic fields, Extended temperature range, Auto-compensation protects against pre-damping, One-sided fitting possible, DC 4-wire, 10…65 VDC, Changeover contact, PNP output, Terminal chamber
