TURCK 1625826 / BI20U-CP40-AP6X2/S10 Inductive Sensors
Inductive Sensor, With Extended Switching Distance.
Overview
Features
- Mounting: Embeddable
- Principle of Operation: Inductive
- Operating Distance: 20 mm
- Sensing Characteristics: Uprox sensor
- Housing Style: Combiprox model limit switch, plastic housing, terminal chamber base with removable sensor

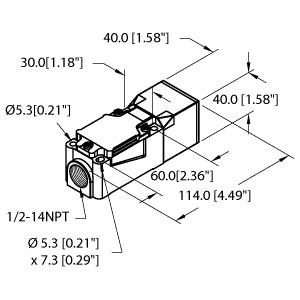

- Housing Diameter or Height: 40 mm
- Secondary Housing Modifier: Without/Not applicable
- Output Function: Normally open (N.O.)
- Output: PNP transistor (current sourcing)
- Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
- Number of LEDS: 2
Description
Inductive Sensor, With Extended Switching Distance, Rated switching distance 20 mm, Flush, Rectangular, height 40 mm, Variable orientation of active face in 9 directions, Plastic, PBT‐GF30‐V0, High luminance corner LEDs, Optimum visibility of operating-voltage display and switching state in any installation position, , Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Large coverage, High switching frequency, DC 3-wire, 10…30 VDC, NO contact, PNP output, Terminal chamber
