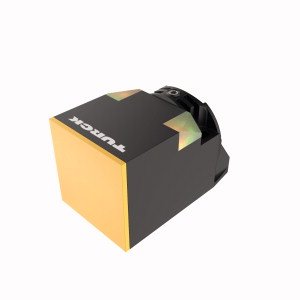

TURCK 1625815 / NI35U-CK40-VP6X2-H1141 Inductive Sensors
Inductive Sensor, With Increased Switching Distance.
Overview
Features
- Mounting: Non-embeddable
- Principle of Operation: Inductive
- Operating Distance: 3.5 mm
- Sensing Characteristics: Uprox sensor
- Housing Style: Stubby model limit switch, short plastic housing, connector
- Housing Diameter or Height: 40 mm
- Secondary Housing Modifier: Without/Not applicable
- Output Function: Complementary outputs: one N.O., one N.C.
- Output: PNP transistor (current sourcing)
- Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
- Number of LEDS: 2
Description
Inductive Sensor, With Increased Switching Distance, Rated switching distance 35 mm, Non-flush, Rectangular, height 40 mm, Variable orientation of active face in 5 directions, Plastic, PBT‐GF30‐V0, High luminance corner LEDs, Optimum view on supply voltage and switching state from any position, Factor 1 for all metals, Increased switching distance, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, Auto-compensation protects against pre-damping, DC 4-wire, 10…30 VDC, Changeover contact, PNP output, M12 x 1 male connector
