TURCK 1623801 / NI75U-CP80-AP6X2/S10 Inductive Sensors
Inductive Sensor, With Increased Switching Distance.
Overview
Features
- Mounting: Non-embeddable
- Principle of Operation: Inductive
- Operating Distance: 75 mm
- Sensing Characteristics: Uprox sensor
- Housing Style: Combiprox model limit switch, plastic housing, terminal chamber base with removable sensor
- Housing Diameter or Height: 80 mm
- Secondary Housing Modifier: Without/Not applicable
- Output Function: Normally open (N.O.)
- Output: PNP transistor (current sourcing)
- Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
- Number of LEDS: 2
Description

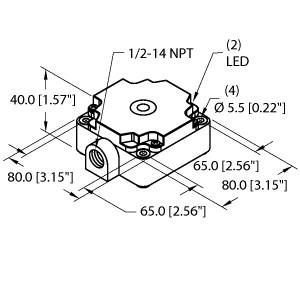

Inductive Sensor, With Increased Switching Distance, Rated switching distance 75 mm, Non-flush, Rectangular, height 41 mm, Plastic, PBT‐GF30‐V0, Thread, 1/2-14 NPT, Factor 1 for all metals, Protection class IP67, Resistant to magnetic fields, Extended temperature range, High switching frequency, DC 3-wire, 10…30 VDC, NO contact, PNP output, Terminal chamber
