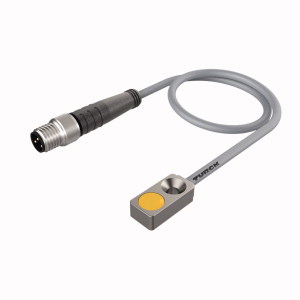

TURCK 1614005 / BI2-Q4.7-AP6X-0.3-PSG3M Inductive Sensors

Inductive Sensor.

$141.80
Part Numbers
  • BI2-Q4.7-AP6X-0.3-PSG3M
  • 1614005
Manufactured
Availability
  • Usually ships in 0-7 business days
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 2 mm
  • Sensing Characteristics: Standard
  • Housing Style: Rectangular style, metal or plastic
  • Housing Diameter or Height: 4.7 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 1
View other configurations.

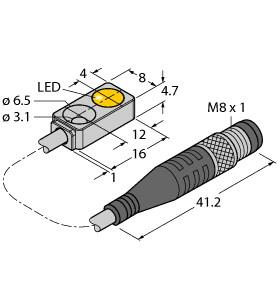

Inductive Sensor, Rated switching distance 2 mm, Cable length (L) 0.3 m, Flush, Rectangular, height 4.7 mm, Active face on top, Metal housing, GD-ZnAI, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end M8 x 1
