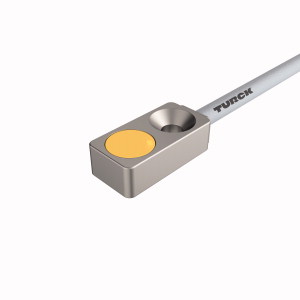

TURCK 1614001 / BI2-Q4.7-AN6X Inductive Sensors

Inductive Sensor.

Available in other configurations.

$128.40

Part Numbers

BI2-Q4.7-AN6X
1614001

Manufactured

By TURCK

Availability

Usually ships in 2-3 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 2 mm
Sensing Characteristics: Standard
Housing Style: Rectangular style, metal or plastic
Housing Diameter or Height: 4.7 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: NPN transistor (current sinking)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

Inductive Sensor, Rated switching distance 2 mm, Cable length (L) 2 m, Flush, Rectangular, height 4.7 mm, Active face on top, Metal housing, GD-ZnAI, DC 3-wire, 10…30 VDC, NO contact, NPN output, Cable connection
