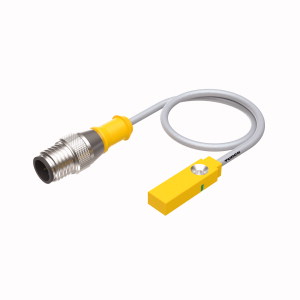

TURCK 1613188 / BI2-Q5.5-AN6X-0.2-RS4T Inductive Sensors

Inductive Sensor.

Available in other configurations.

$119.30

Part Numbers

BI2-Q5.5-AN6X-0.2-RS4T
1613188

Manufactured

By TURCK

Availability

Usually ships in 4-6 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 2 mm
Sensing Characteristics: Standard
Housing Style: Rectangular style, metal or plastic
Housing Diameter or Height: 5.5 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: NPN transistor (current sinking)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

Inductive Sensor, Rated switching distance 2 mm, Cable length (L) 0.2 m, Flush, Rectangular, height 5.5 mm, Active face on top, Plastic, PP, DC 3-wire, 10…30 VDC, NO contact, NPN output, Pigtail with M12 × 1 connector
