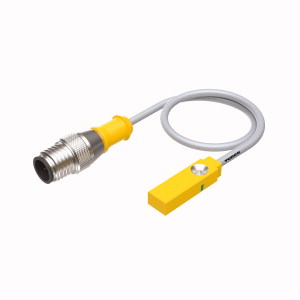

TURCK 1613171 / BI2-Q5.5-AG6X-0.2-RS4.23T Inductive Sensors

Inductive Sensor.

$119.30
Part Numbers
  • BI2-Q5.5-AG6X-0.2-RS4.23T
  • 1613171
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 2 mm
  • Sensing Characteristics: Standard
  • Housing Material Modifier: Without
  • Housing Style: Rectangular style, metal or plastic
  • Primary Barrel Modifier: Without/Not applicable
  • Housing Diameter or Height: 5.5 mm
  • Secondary Barrel Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: 2-wire DC
  • Voltage Range: 8.2 VDC
  • Number of LEDS: None
View other configurations.
Inductive Sensor, Operating voltage 10…30 VDC, Rated switching distance 2 mm, Flush, Cable length (L) 0.2 m, Rectangular, height 5.5 mm, Active face on top, Plastic, PP, DC 2-wire, 10…30 VDC, NO contact, Cable with connector
