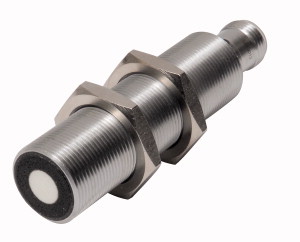

TURCK 1610110 / RU130U-M18E-LU8X2-H1151 Ultrasonic Sensors
Ultrasonic Sensor, Diffuse Mode Sensor.
Overview
Features
- Operating Distance: 130 cm
- Design Principle: Proximity/diffuse
- Housing Design: 18 mm barrel, front sensing transducer
- Output Function: Analog 0 to 10 V output
- Teach Button: Without
- Connectorized Sensor: Eurofast connector, metal or plastic, male
- Connector to Sensor Transition: Straight
- Number of Connector Pins: 5
- Wiring Configuration: Standard wiring
- IO-Link: Not available with analog variants
Description
Ultrasonic Sensor, Diffuse Mode Sensor, Max. range 1300 mm, Smooth sonic transducer face, Cylindrical housing M18, potted, Connection via M12 x 1 male, Teach range adjustable via adapter, Temperature compensation, Blind zone: 15 cm, Range: 130 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±16 °, 1 × analog output, 0…10 V/additional switching output, PNP
