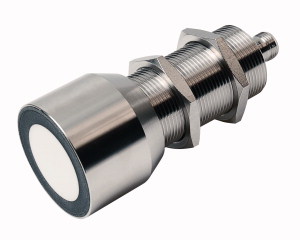

TURCK 1610100 / RU600U-M30E-LI8X2-H1151 Ultrasonic Sensors
Ultrasonic Sensor, Diffuse Mode Sensor.
Overview
Features
- Operating Distance: 600 cm
- Design Principle: Proximity/diffuse

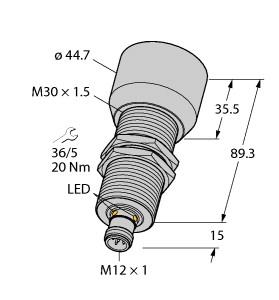

- Housing Design: 30 mm barrel, front sensing transducer
- Output Function: Analog 4 to 20 mA output
- Teach Button: Without
- Connectorized Sensor: Eurofast connector, metal or plastic, male
- Connector to Sensor Transition: Straight
- Number of Connector Pins: 5
- Wiring Configuration: Standard wiring
- IO-Link: Not available with analog variants
Description
Ultrasonic Sensor, Diffuse Mode Sensor, Max. range 6000 mm, Smooth sonic transducer face, Cylindrical housing M30, potted, Connection via M12 x 1 male, Measuring range adjustable via Easy-Teach, Temperature compensation, Blind zone: 60 cm, Range: 600 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±15 °, Analog output, 4…20 mA, additional switching output, PNP
