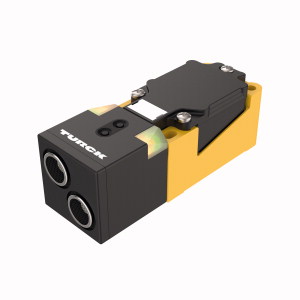

TURCK 1610092 / RU200-CP40-2UP8X2T/S10 Ultrasonic Sensors
Ultrasonic Sensor, Diffuse Mode Sensor.
Overview
Features
- Operating Distance: 200 cm
- Design Principle: Retroreflective programmable, legacy RU model

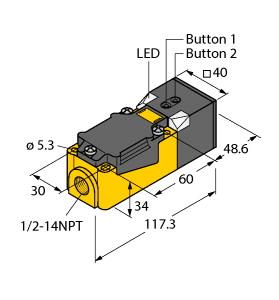

- Housing Design: 166 x 40 x 40 mm rectangular housing, 5-way rotatable sensing head, terminal chamber for M20 x 1.5 cable gland
- Output Function: 2x PNP output
- Teach Button: With teach button
- Connectorized Sensor: Without/Not applicable
- Connector to Sensor Transition: Not applicable
- Number of Connector Pins: Not applicable
- Wiring Configuration: Not applicable
- Special Options: 1/2-14 NPT conduit connection
Description
Ultrasonic Sensor, Diffuse Mode Sensor, Max. range 2000 mm, Separate transducers for transmitter and receiver, Rectangular housing 40 x 40 x 166 mm, Connection via screw terminals, Terminal chamber for cable gland NPT, Teach range adjustable via button, Blind zone: 5 cm, Range: 200 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±60 °, 2 x switching outputs, PNP, NO/NC programmable
